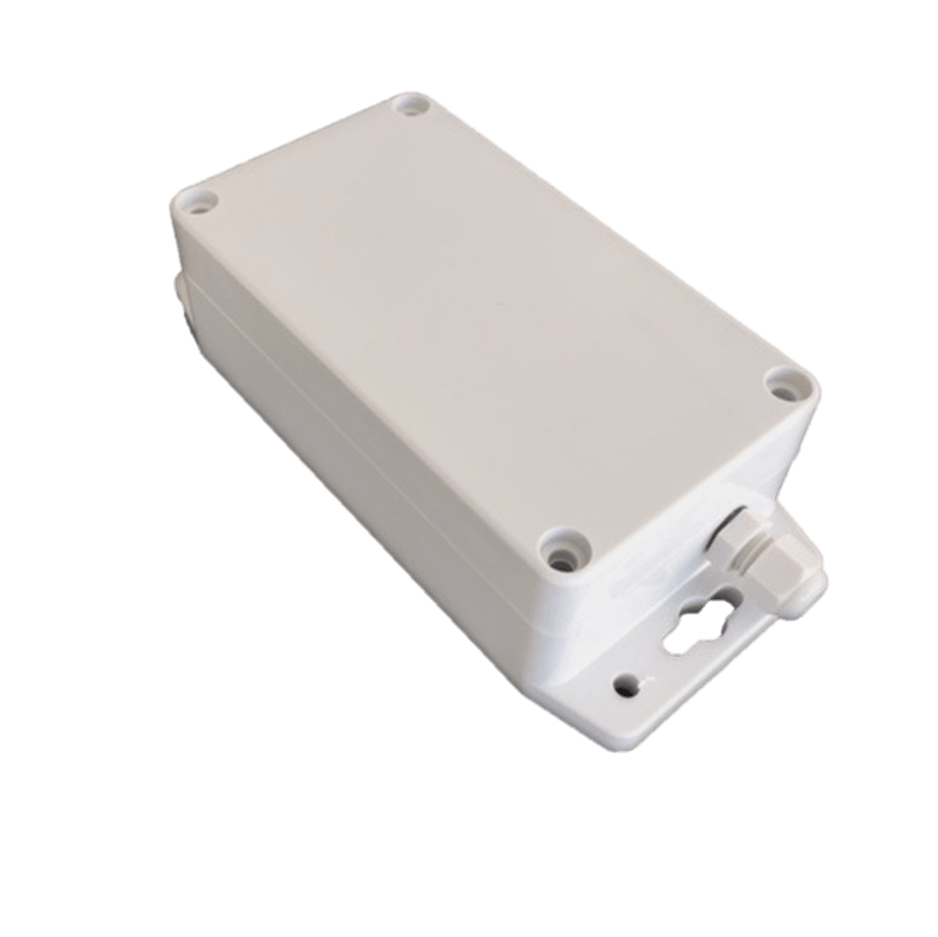

COBS BLE Pos Beacon is a rugged industrial Bluetooth Low Energy proximity-beacon for external DC voltage supply. It simultaneously supports multiple beacon technologies: iBeacon, Eddystone (full support, with GATT and EID). COBS BLE Pos Beacon is designed for tough operating conditions (rugged weatherproof IP67/NEMA6 enclosure, wide temperature range) and is intended for use in heavy industry. It is powered by external DC voltage up to 30V, and compatible with COBS Versity devices.
Advertising:
- 8 slots configurable for non-connectable advertising frames:
- 4 slots, each configurable for Eddystone frame types: UID, URL, TLM or EID. Full support for specifications Eddystone Configuration GATT Service by Google
- 4 slots, each configurable for the following frame types: iBeacon, Quuppa (Direction Finding packet
- Advertising interval (independently configurable for each slot): 0.1 to 60 secs
- TX power (independently configurable for each slot): -40 dBm, -30 dBm, -20dBm to 4 dBm (with 4dB steps).
- Additional configuration options: non-connectable mode, anonymous mode, programmable time period, locked/unlocked mode, change password
- Configurable with BlueBeacon Manager App for Android and iOS
Radio
- Version: Bluetooth 4.1, Low Energy
- Frequency: 2.402 to 2.480 GHz
- Module: Nordic SoC nRF51822 (MCU and transceiver)
- Antenna: printed meandered planar F-antenna
Electrical specifications
- Power supply: external DC power supply (2.7 - 30V DC)
- Power current: <10 mA (peak), <0.25 mA (average, depending on settings)
- Power connector: 2-pole screw-connector header with cable-gland
Mechanical and environmental specifications
- Enclosure material: Polycarbonate
- Size: 115 x 65 x 40 mm (excluding flanges)
- Weight: 112 gram
- Fastening: Flanges for surface installation
- Protection: IP65/NEMA4 (enclosure)
- Operating temperature: -30°C to +70°C
Certifications
- CE (EU)
