PBX and UC in one box for ISDN connections or ALL
IP.
The IP411 replaces the IP302 and the IP305 with two BRI interfaces to the trunk
and has internal analogue ports. This gateway already comprises all interface
licenses.
Successor of the IP302 and IP305 Combines the advantages of IP302 and IP305
Recommended for “all in one box” – PBX and UC installations up to 50
users
• 4 voice channels (2 BRI)
• 2 analogue subscribers (FXS)
• Includes all hardware licenses
• No conferences

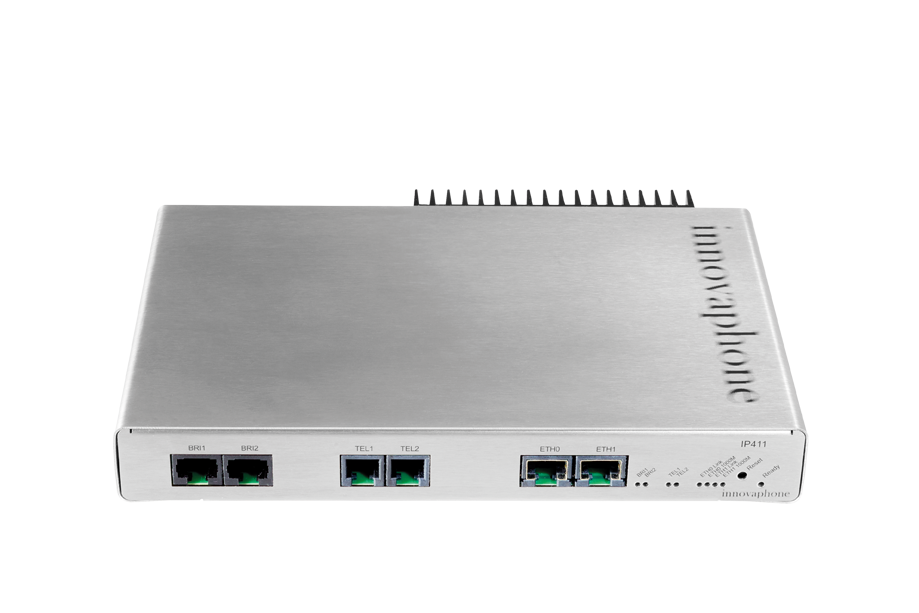

Innova phone IP411 VoIP-PBX and gateway for two ISDN BRI interfaces and two
analogue extensions plus reverse proxy and SBC functionalities
Firmware Device operated with Version 12 or higher
Housing Size: 210 x 134 x 32 mm one height unit (HU) for 19” systems
Weight: 835 g
Interfaces 2 x ISDN-BRI-interface (S0): for connection of ISDN-BRI-trunklines
or extensions, RJ-45 (modular Jack 8P8C), TE or NT mode operation 2 x a/b
interface FXS: connection of analogue extensions, RJ-11 (modular Jack 6P2C)
2 x Gigabit Ethernet: 1000-BASE-T (auto negotiation), RJ-45 (modular Jack 8P8C)
„ Power over Ethernet“ according to IEEE 802.3af, Class 3
Energy Efficient according to IEEE 802.3az
internal slot for mSATA SSD Power consumption up to 2.5W compatible to JEDEC
MO-300 standard, dimension 50,8 x 29,85 mm
Hardware Power supply: Power over Ethernet according to IEEE 802.3af, Class 3
400 MHz CPU, 1 GB RAM, 32 MB Flash, 128 MB Flash Disk (NAND) Operation
temperature: 0 C to +45 C Humidity: 10% to 90% (not condensed) Storage
temperature: -10 C to +70 C
Digital Signal Processor (DSP) for up to 6 voice channels One channel for the Innova
phone fax server using T.38 or via G.711. In case of G.711, each fax
transmission consumes 2 DSP channels.
Voice Codecs G.711 A-law / µ-law, G.723.1 (53), G.729A and Opus-NB
incl. VAD (Voice Activity Detection), CNG (Comfort Noise Generation) Dynamic
Jitter Buffering Echo Compensation according to G.168 Modem support
Innovaphone PBX Platform for up to 50 PBX Users (all-in-one)
Generic Features generic features Innovaphone gateways
