The “secret weapon” SBC, Reverse Proxy, Media Relay and PBX.
With the new IP0011 gateway, innovaphone now provides a well priced and performant platform for well-known and new applications, such as the innovaphone SBC or the innovaphone Reverse Proxy and the innovaphone PBX.
Successor of the IP0010 with extended application possibilities
- Recommended for structured PBX and UC installations with up to 25,000 subscribers (if necessary, in combination with other gateways)
- Perfect as a platform for SBC or Reverse Proxy
- No conferences

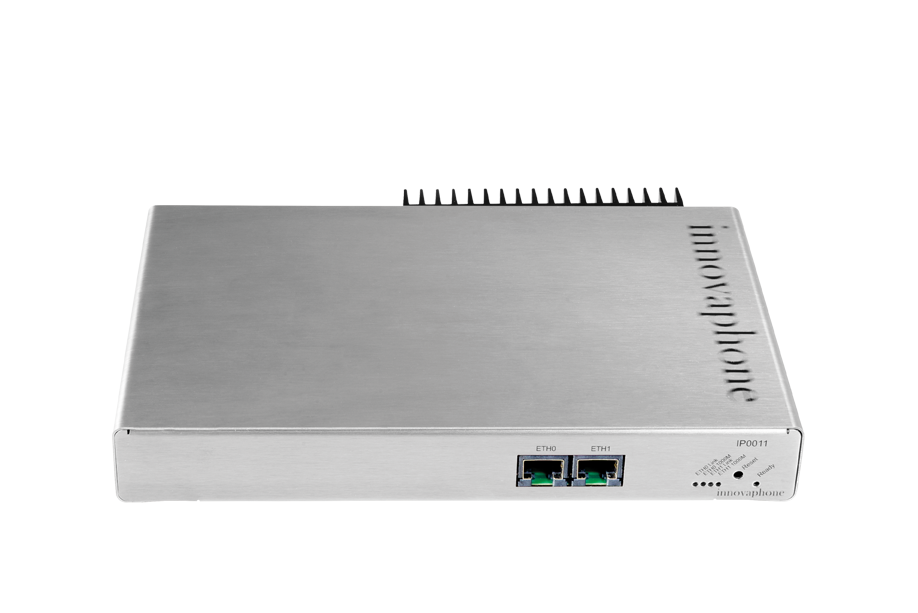

innovaphone IP0011
VoIP routing gateway including reverse proxy and SBC functionalities
Firmware
Device operated with Version 12 or higher
Housing
Size: 210 x 134 x 32 mm
one height unit (HU) for 19” systems
Weight: 1050 g
Interfaces
2 x Gigabit Ethernet: 1000-BASE-T (auto negotiation), RJ-45 (modular Jack 8P8C)
„Power over Ethernet“ according to IEEE 802.3af, Class 3
Energy Efficient according to IEEE 802.3az
internal slot for mSATA SSD
Power consumption up to 2.5W
compatible to JEDEC MO-300 standard, dimension 50,8 x 29,85 mm
Hardware
Power supply: Power over Ethernet according to IEEE 802.3af, Class 3
800 MHz CPU, 2 GB RAM, 32 MB Flash, 1 GB Flash Disk (NAND)
Operation temperature: 0 °C to +45 °C
Humidity: 10% to 90% (not condensed)
Storage temperature: -10 °C to +70 °C
Generic Features
generic features innovaphone gateways
