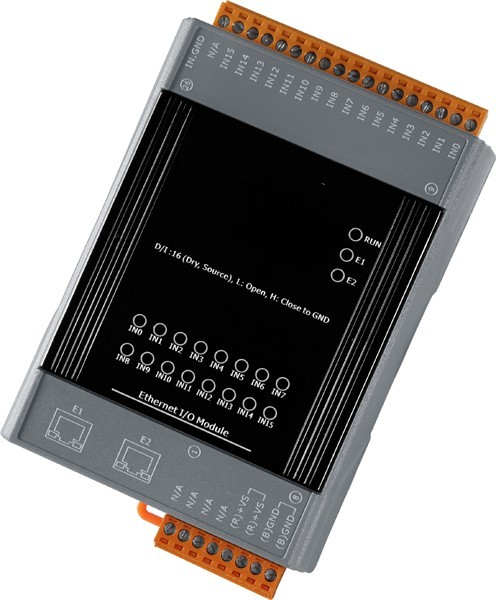

ETHI16-P2I provides 16 digital inputs - for drying (HIGE switch). It has optical isolation for 2500 VDC with overvoltage protection, but does not provide channel-to-channel isolation. Each input channel can be used as a 32-bit counter. Power suppy via PoE with 2 x RJ45, one is for data + PoE and the other is for data only. PoE is not forwarded to the next module.
16 x Digital Inputs Dry Contact Input, 32bit Counter 100Hz, 2 x RJ45, Modbus/TCP/UDP, PoE and 12 - 48VDC
- Built-in Web Server
- WebGUI for configuration
- Modbus TCP and Modbus UDP Protocol
- Dual Watchdog
- Operating Temperature Range: -25 ~ + 75 °C
- I/O Pair - Input Mirrors in the Second Output
- 16 x Digital Input (Counter): Contact to Input, Dry
- 2 x RJ45 Ethernet - Daisy Chain
- Supply Voltage: Poe or 12 - 48VDC / 3.2Watt
SPECIFICATIONS
- Supply: 10 - 30 VDC, 5 W via terminal block or PoE
- Input: 16 isolated channels with common ground.
- Logic 1: Floating
- Logic 0: Input grounded
- Isolation: 3750 VDC
- Network: 10/100 Mbit w/RJ45 connector
- Protocol: Modbus/TCP, TCP/IP and UDP
- Switch: Built-in 2 port Ethernet switch
- Counter: Inputs can act as 32 bit counter, max. frequency 500 Hz
